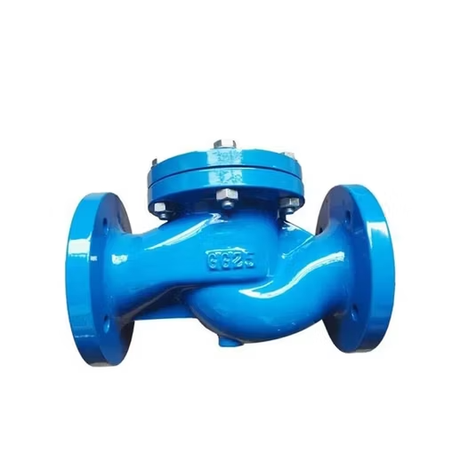

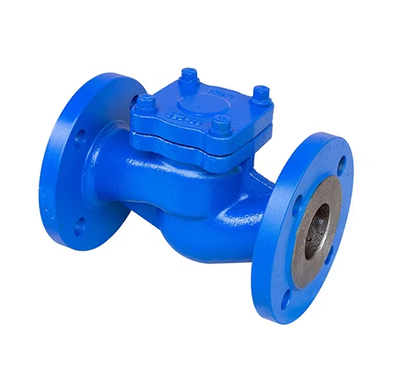

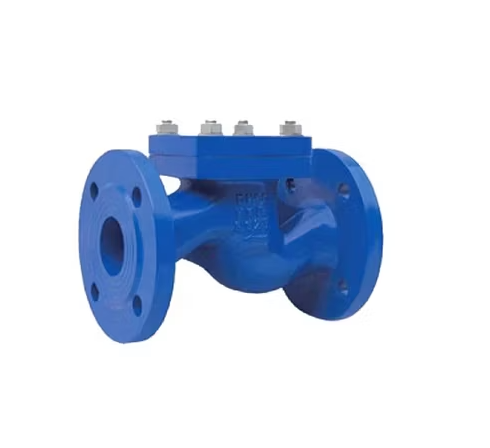

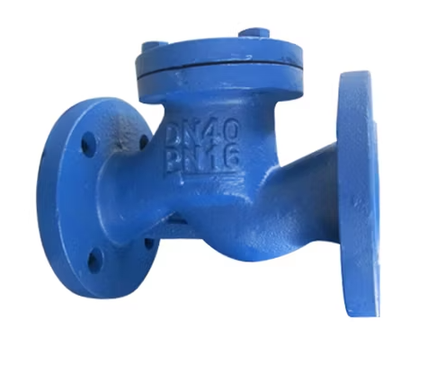

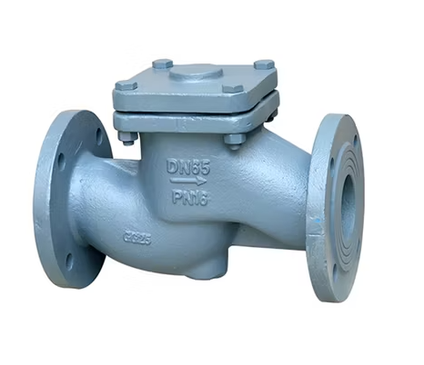

DIN Cast Iron Flanged Lift Check Valve

Reliable DIN standard Cast Iron Lift Check Valve with flanged ends, designed for effective backflow prevention in industrial and water systems. Suitable for wholesale B2B supply.

DIN Cast Iron Flanged Lift Check Valve
DIN Cast Iron Flanged Lift Check ValveDIN Cast Iron Flanged Lift Check ValveDIN Cast Iron Flanged Lift Check ValveDIN Cast Iron Flanged Lift Check Valve

Product Description

Complies with DIN standards (e.g., DIN2533, DIN3202 F6) for design and dimensions.

Constructed from durable Cast Iron or Ductile Iron materials for long service life.

Features flanged end connections (PN10/PN16) for easy integration into pipelines.

Utilizes a lift mechanism for simple and reliable automatic backflow prevention.

Offered with metal-to-metal hard seal surfaces for durability (alternative seat options may be available).

Bolted bonnet design allows for straightforward maintenance access.

Suitable for industrial water systems and other compatible fluid applications.

Product Parameter

Design Standard: Compliant with MSS-SP-71 / BS5153 / DIN2533

Body Material: Cast Iron / Ductile Iron

Size Range: DN40 - DN300 (1.5" - 12")

Pressure Class: PN10 / PN16 (Also 125LB / 150LB equivalents)

End Connection: Flanged (DIN / ANSI / BS options)

Seal Type: Metal Hard Sealed (Standard; other options may be available)
